๐ผ๏ธ Gallery Panel Configuration¶
The Gallery Panel appears on the loading screen and allows you to showcase images such as cars, team highlights, banners or community events.
You can customize the images shown by editing the gallery array in your configuration file.
Quicker in the Config Builder
The Config Builder sets all of this under Gallery with a live preview, and Build with AI can set it up from a plain description. Every field with its type and default is in the Config reference: gallery.
JSON Structure¶
"gallery": [
{ "path": "./assets/png/headshot.png" },
{ "path": "./assets/png/bluebmw.png" },
{ "path": "./assets/png/fmbanner.png" },
{ "path": "./assets/png/2gtrs.png" },
{ "path": "./assets/png/vibe.png" },
{ "path": "./assets/png/supra2.png" }
]
Field Breakdown¶
Each image takes one field, path: a URL or a path inside the resource such as ./assets/png/headshot.png (files go in html/assets/). See gallery.
Recommended Image Format
Use .png or .jpg images in landscape orientation for best visual balance.
Aspect Ratio Tip
For a clean layout, try to keep all gallery images at a consistent resolution (e.g. 1280x720 or 1920x1080).
Viewing Images (Lightbox)¶
Clicking any thumbnail opens the image in a full-size lightbox. From there you can move through the gallery:
- On-screen arrows: left/right arrows on the sides of the image jump to the previous/next picture.
- Keyboard: the โ and โ arrow keys navigate, and Esc closes the lightbox.
Navigation wraps around: going back from the first image shows the last, and forward from the last returns to the first.
Single image
The navigation arrows only appear when the gallery has more than one image. No extra configuration is needed: navigation works over your existing gallery array.

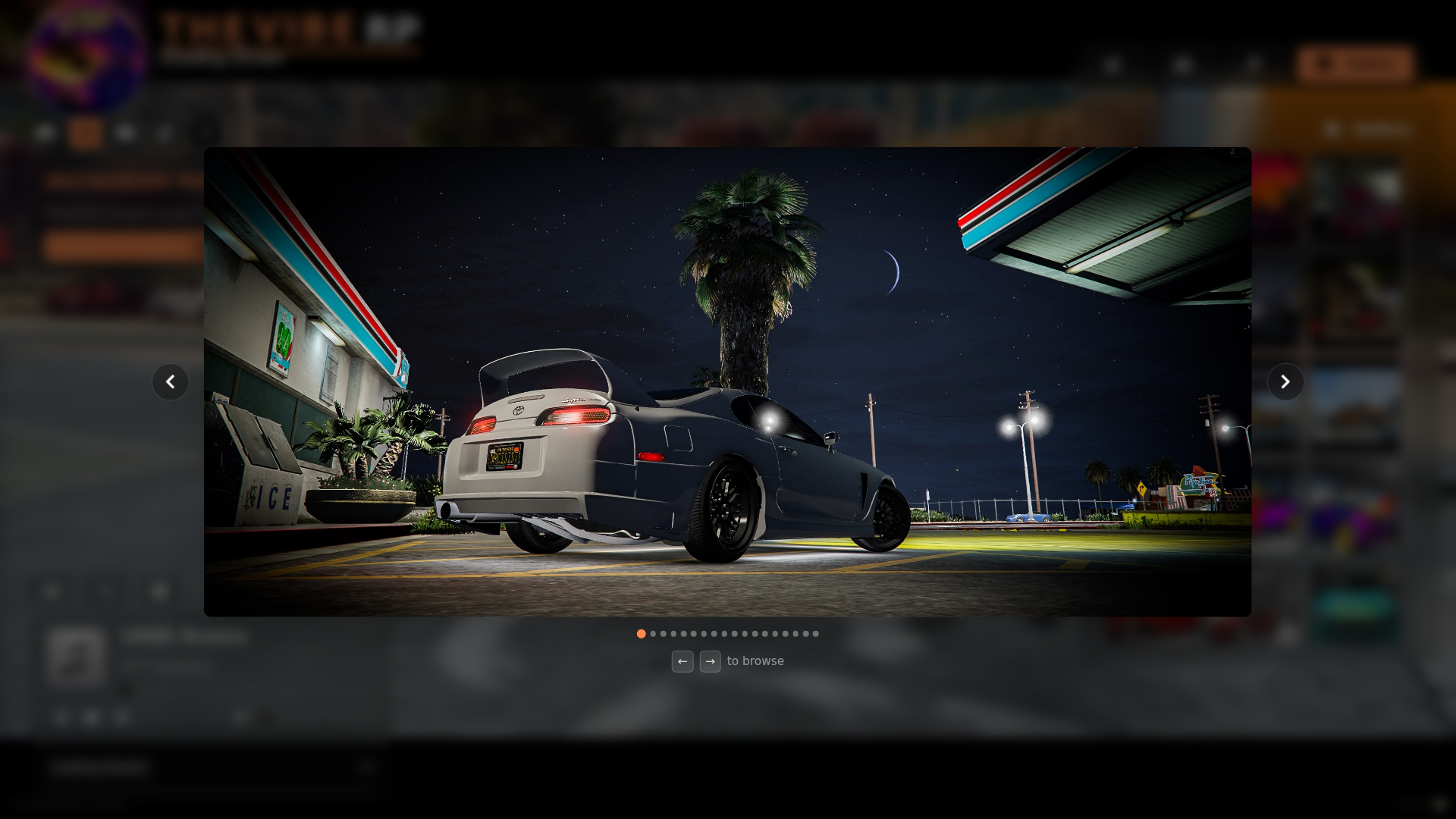

Lightbox Preview
Gallery Panel Preview
Automatic Gallery Tab Hiding
The gallery tab is automatically hidden if the gallery array is empty ([ ]) or omitted entirely from the config. To disable the gallery feature, simply remove the gallery entry or ensure the array contains no images.
